Product Name:	Acquisition Robotic Amm Power System Solution
Maximum Working Radius:	850MM
Maximum Linear Speed:	0.9m/s
Joint Maximum Speed:	150°/s
Controller Communication Inter:	EtherCAT/CAN
Protection Rating:	IP54

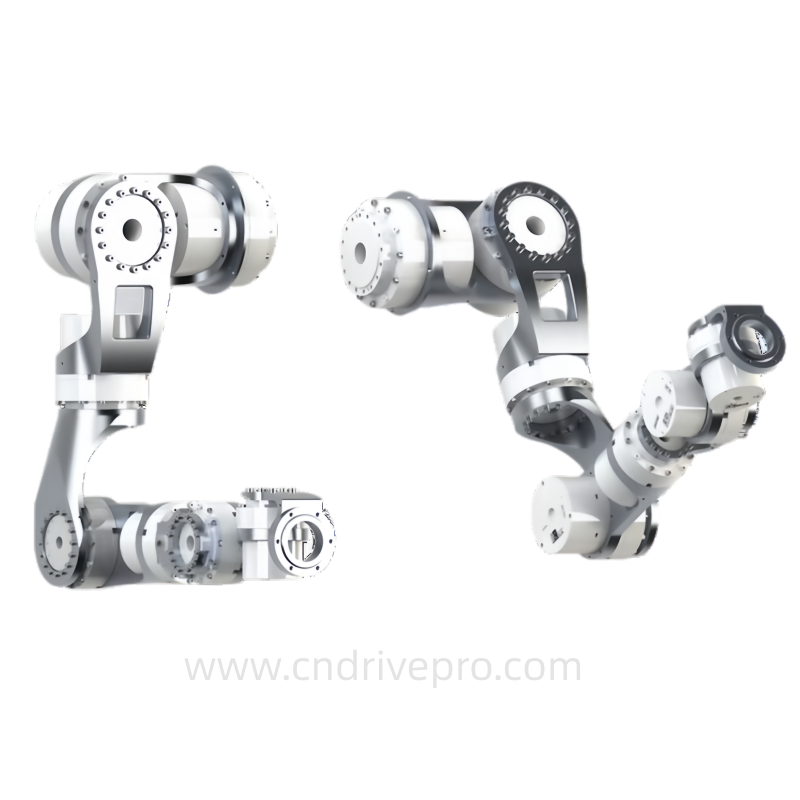

Core Product Harmonic Robotic Arm

Empowering Industrial Automation, Redefining the Pinnacle of Precision Intelligent Manufacturing.

1. All technical parameters are measured under standard testing conditions; actual use may vary depending on environmental conditions

2. J1-J7 are the 7 joint numbers of the robotic arm, arranged sequentially from the base to the end-effector

3. Rated load refers to the maximum recommended load at the robotic arm's end-effector under normal operating conditions

4. Repeat positioning accuracy data is measured under standard testing conditions

Basic Parameters
Parameter	Value	Parameter	Value
Reach	850mm	J1 Motion Range	±180°
Weight	11.2kg	J2 Motion Range	-180~0°(Left Arm) 0~+180° (Right Arm)
End-Effector Rated Load (Single Arm)	10kg	J3 Motion Range	±180°
Repeat Positioning Accuracy	±0.05mm	J4 Motion Range	-135~+90° (Right Arm) -90~135° (Left Arm)
Rated Voltage	48V	J5 Motion Range	±180°
Rated Power	1000W	J6 Motion Range	±90°
Communication Method	CAN/EtherCAT	J7 Motion Range	±90°

Performance Parameters
Parameter	Specification	Parameter	Specification
Maximum Working Radius	850mm	Protection Rating	IP54
Maximum Linear Speed	0.9m/s	Operating Temperature	0°C ~ 50°C
Joint Maximum Speed	150°/s	Storage Temperature	-20°C ~ 60°C
Controller Communication Interface	EtherCAT/CAN	Installation Method	End face flange installation
